Condition - BRAND NEW, SEALED
Beale Street Audio | 8" In-Ceiling Speaker | IC8-BB
Beale Street Audio | 8" In-Ceiling Speaker | IC8-BB
Please allow 3-5 Days for delivery
Couldn't load pickup availability
Share
Specifications
Dimensions and weight
Weight (KG) - 3.8
Dimensions (Speaker cutout) (mm) - 261.5
Dimensions (Speaker diameter) (mm) - 284
Dimensions (Depth) (mm) - 219.5
Technical Specification
Speaker Type – In Ceiling 2-Way
Woofer – 8" Carbon Fiber
Tweeter – 1″ Titanium Dome
Frequency – 32 Hz – 25 kHz
Sensitivity – 92db
Butyl Rubber Surround
Sonic Vortex® Ported Transmission Line

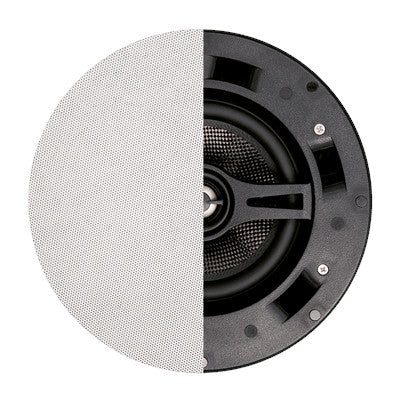

Magnetic Bezelless Grille – White; paintable
Impedance – 8Ω
Connector Type – Gold Spring Push Terminal
Power Handling – 5-120W
Pivoting Tweeter
EZBracket Size – B
Highlights – Broader Sound, Deeper Bass
The Beale Street in-ceiling speaker range offer a range of advantages which help them overcome of the challenges often faced by in-ceiling speakers including:
- More bass in less space
- Built-in protection for components
- Control of the sound
- No back box problems
- Reduced sound leakage
- Sonic Vortex technology
The Beale Street in-ceiling speaker comes in 2 size ranges:
IC6 Range – 6.5″ diameter
IC8 Range – 8″ diameter
Sonic Vortex Technology

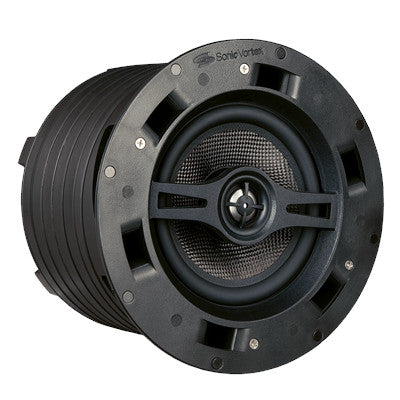

Beale Street Audio Sonic Vortex® technology generates rich, deep bass and effortless clarity from what most people would call a ‘back box’, but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a ‘twist’ on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass.
The Beale Street Audio range includes three models to suit various requirements and budgets, ranging from the B Series, offering smooth sound and great value through the MB series, with a broader sound and deeper bass, to the BB Series offering more sound detail and power handling.
Beale Street Audio
Acquired by Vanco in 2017, Beale Street Audio™ is renowned for its unique architectural speaker line featuring the award-winning, patented Sonic Vortex® technology. Beale Street Audio products defy physics by providing an unprecedented level of deep, rich, bass output and room energizing dynamics with a shocking 6 to 9 dB boost over traditional in-wall and in-ceiling loudspeakers that utilize the same enclosure size. The full Beale Street Audio line is available solely through distribution and includes a variety of in-ceiling and in-wall speakers, subwoofers, amplifiers and accessories suitable for any application, all at extremely competitive prices.
